Thermal break aluminium windows, built to your schedule.
Casement, French window, awning, sliding and fixed systems from 86 mm to 120 mm series, manufactured to project drawings and certified for North American, Australian and European compliance.
One profile system is not enough for every climate
A window that performs in Dubai does not automatically perform in Melbourne or Toronto. Wind load, driving rain, solar gain and acoustic requirements all point to different profile depths, glass build-ups and opening types. We build five window families so the specification can follow the climate instead of the catalogue.
- Thermal break profiles with polyamide isolation bars, cut and assembled in-house
- Glass controlled in-house: double or triple glazed, tempered, laminated, Low-E, argon filled
- Tested values published: U-factor from 0.19 Btu/hr·ft²·°F on fixed frames
- Complete packages: frames, sashes, glass, hardware, screens and accessories from one factory
- Project support: shop drawings, glass schedule and certification documents for approvals

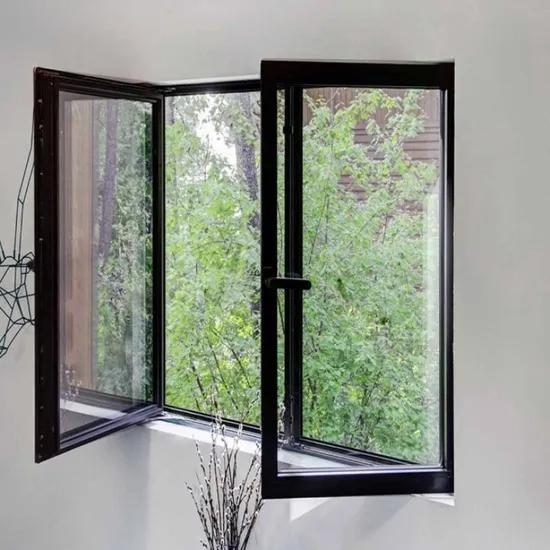

Outward opening casement windows
The workhorse of residential and hotel projects. Outward opening sashes give a full clear opening, seal tightly on compression gaskets, and suit everything from apartment bedrooms to villa facades.
| Series | EB-86 · EB-112 thermal break |
| Opening | Outward casement, top hung, side hung, fixed combination |
| Tested performance | U 0.39 (86 mm) / 0.30 (112 mm) Btu/hr·ft²·°F · air leakage 0.03 / 0.11 cfm/ft² |
| Certification | CSA Group 80250569 · AS 2047 via CSi 7724 |
| Typical use | Villas, apartments, hotels, schools |

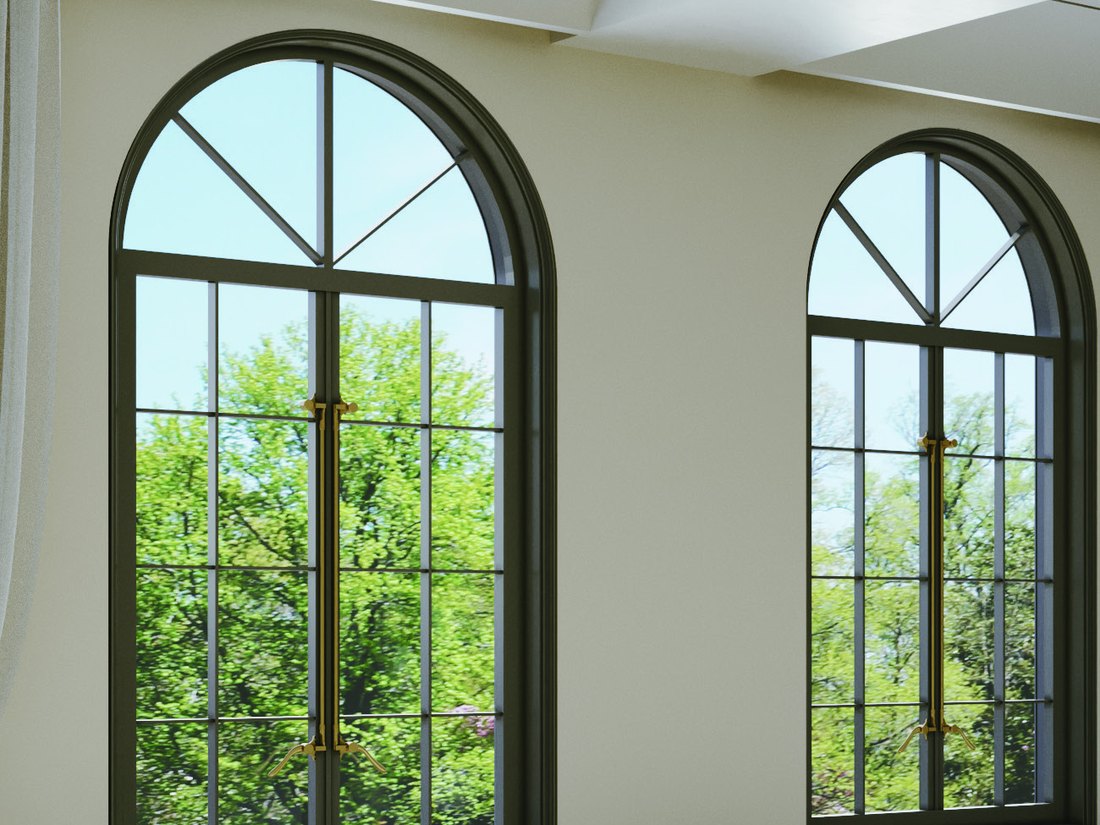

French windows
Arched tops and slim mullions give French windows their classic European character. Built on the same thermal break platforms as our casements, they pair fixed side lights with opening sashes in a single elevation without giving up the sealed, double glazed performance.
| Series | EB-86 · EB-112 thermal break |
| Opening | French casement, fixed side lights, combination units |
| Certification | CSA Group 80250569 · AS 2047 via CSi 7724 |
| Typical use | Villas, European residential, heritage-style projects |

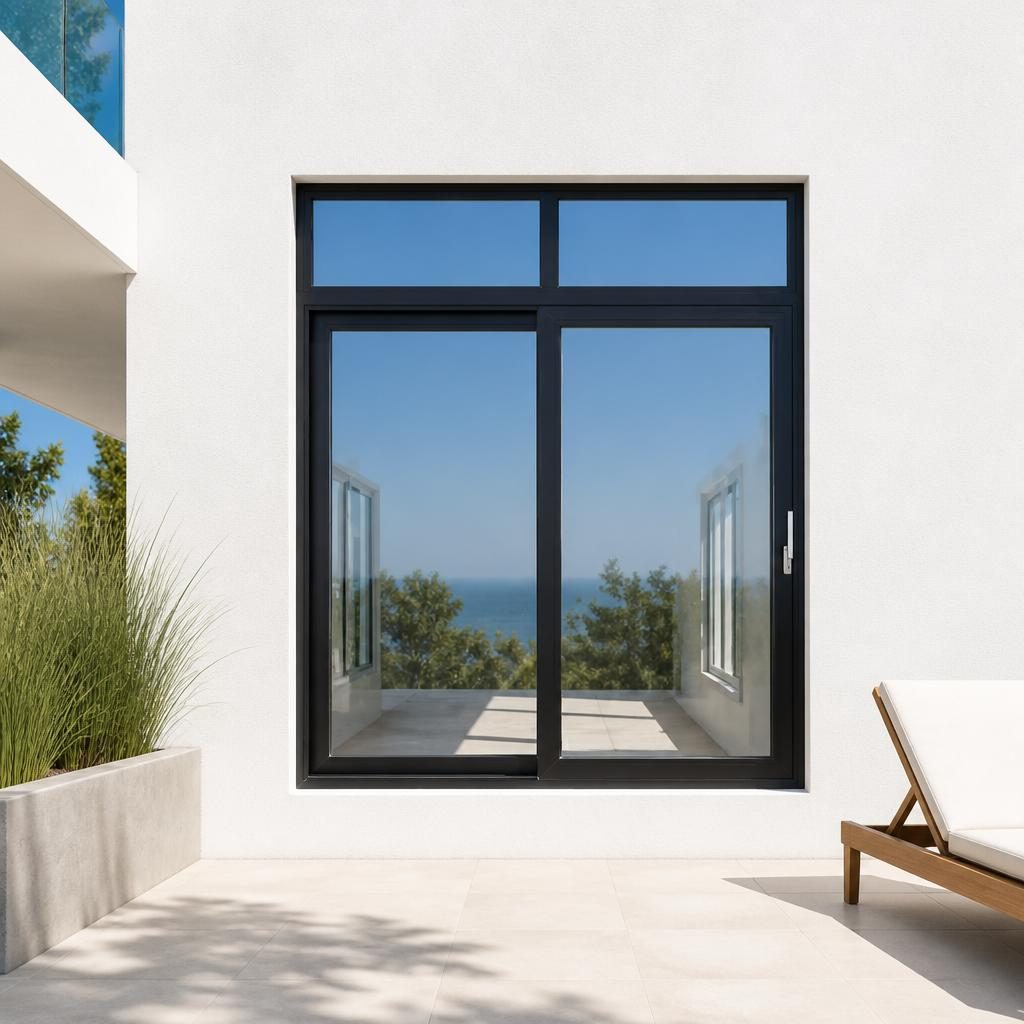

Sliding and lift-slide windows
For wide openings where a hinged sash would be impractical. Side-press sliding gives strong water performance in exposed locations; lift-slide carries very large panels with a light pull and a tight seal when closed.
| Series | EB-120 side-press · 120 series lift-slide |
| Profile | 6063-T5 aluminium, 1.6 mm wall, 120 mm frame width |
| Standard glazing | 5 + 20A + 5 mm double glazed unit |
| Sash weight | Up to 60 kg per sash |
| Performance class | LC-PG40 · design pressure 1920 Pa · water 720 Pa · wind resistance level 7 · air and water level 4 |
| U-value / acoustics | 2.5–3.0 W/(m²·K) · 30–35 dB sound reduction |
| Certification | CSA Group 80250569 (2200 × 2100 mm test specimen) |
| Typical use | Balconies, terraces, sea-facing facades |

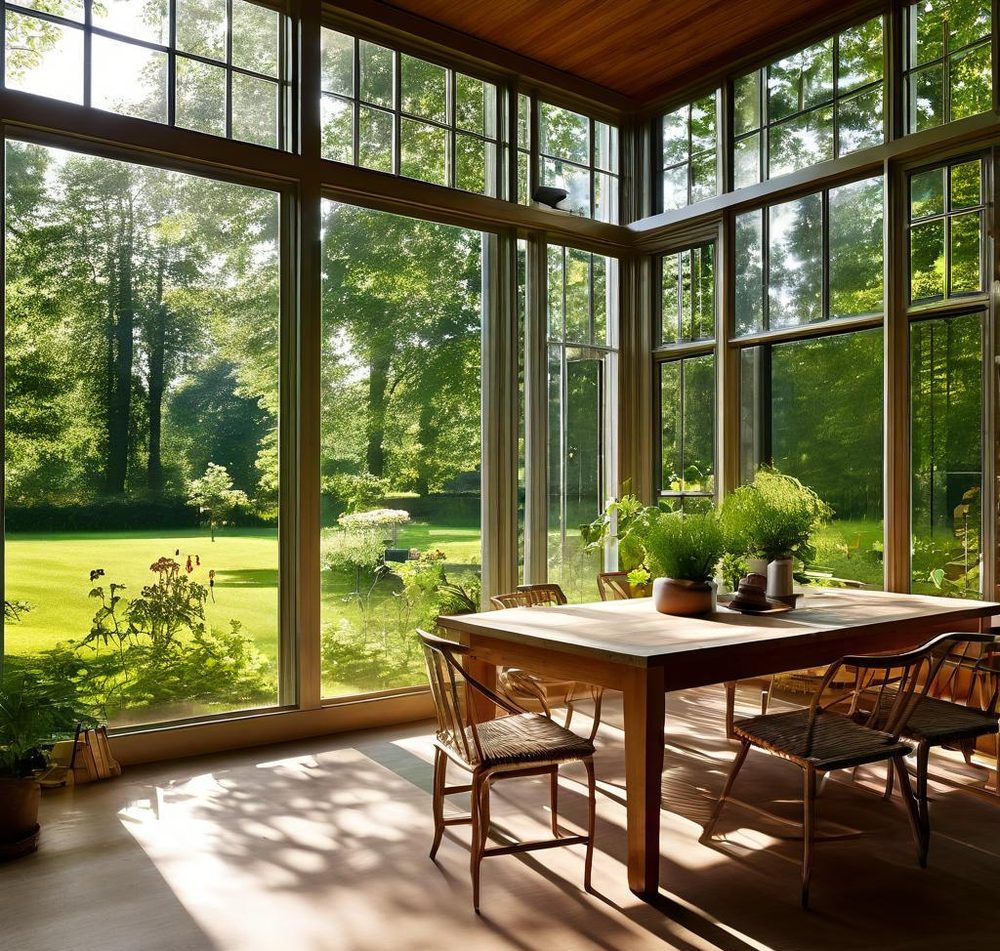

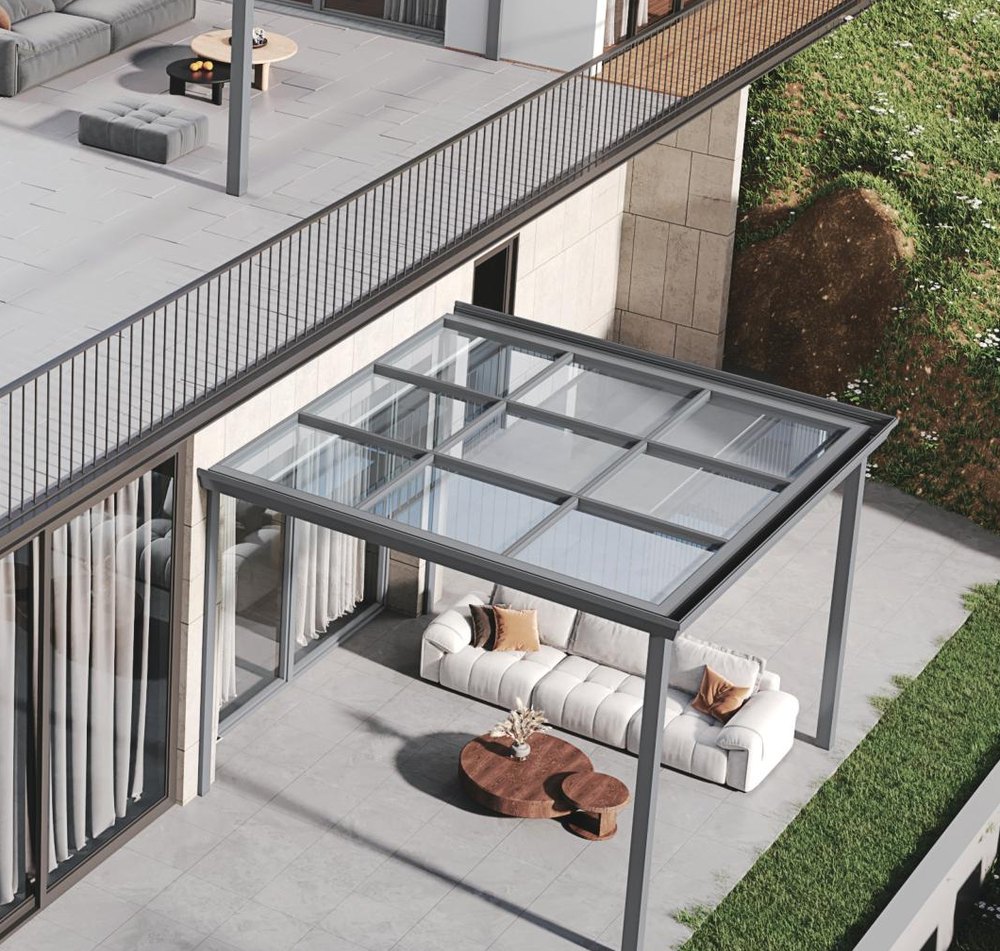

Fixed frames, sunrooms and curtain wall
Fixed glazing delivers the best thermal and acoustic numbers in the range, and it is where large spans become possible. Curtain wall systems carry the same engineering across full building envelopes, and we combine fixed frames with operable sashes in the same elevation.
| Series | EB-112 fixed · sunroom · curtain wall |
| Tested performance | U 0.19 Btu/hr·ft²·°F · air leakage 0.01 cfm/ft² |
| Certification | CSA Group 80250569 · AS 2047 via CSi 7724 |
| Typical use | Sunrooms, stairwells, commercial facades |
What we need from you, and what you can choose
Build-up
Single, double or triple glazed; tempered or laminated; Low-E coating on face 2 or 3; argon filling at 94% or above; tinted or reflective options for high solar gain.
Finish and colour
Powder coated, anodised or wood grain finish. Standard RAL colours plus project-specific colours; sand grey and matt black are common for export orders.
Operation and security
German or Chinese branded friction stays, handles, multipoint locks and hinges. Fly screens, blinds and restrictors can be factory fitted.
What these systems cost
Every system on this page is made to measure, so there is no single rate per square metre. For project quantities, most orders fall between USD 80 and USD 150 per m² FOB China, depending on system depth, glass build-up, hardware, finish and volume. Our window price and costing guide sets out what each band buys, the six variables that move it most, and how to send a specification that comes back as an accurate number.
Send a window schedule, get a line-by-line quotation.
DWG, PDF and Excel schedules accepted. Reply within one working day.
